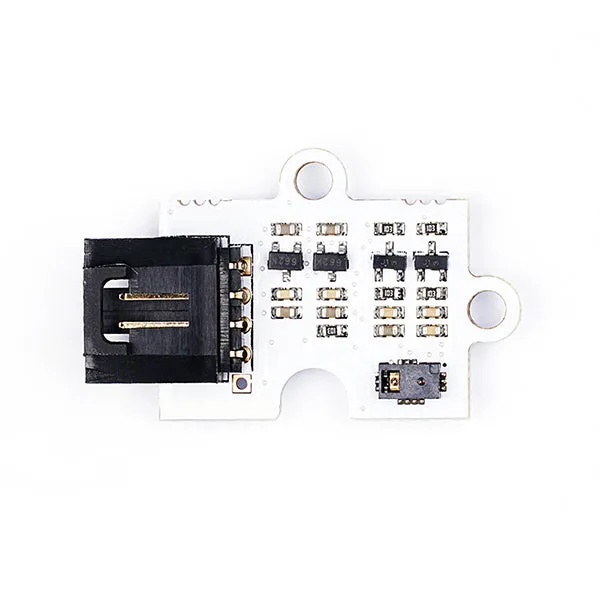

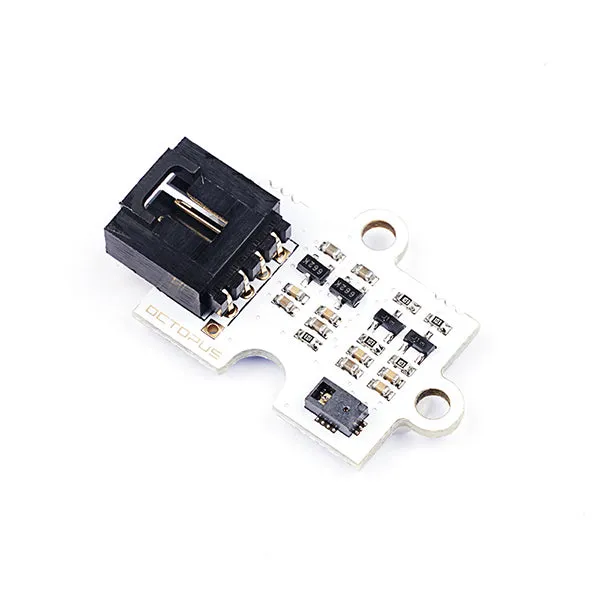

ELECFREAKS Octopus Gesture Sensor Brick is PAJ7620U2 that integrates gesture recognition function with general I2C interface into a single chip. It can recognize 9 gestures including move up, move down, move left, move right, etc with a simple swipe of your hand.
DIMENSION

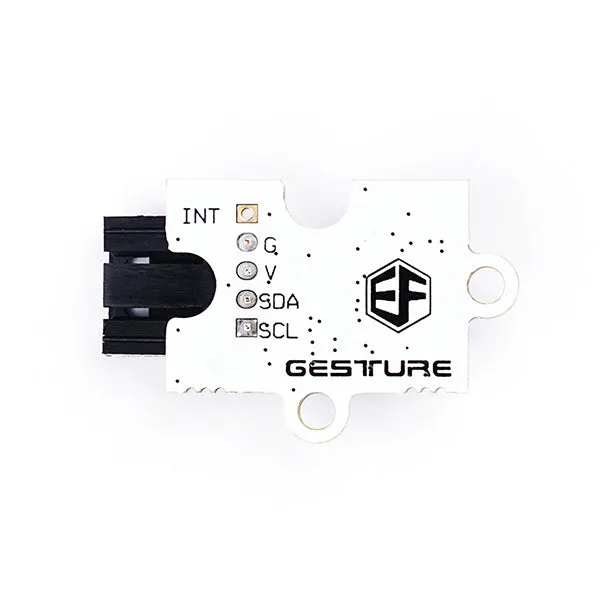

PINS & CONNECTORS
CONNECTION
FEATURES
Various main boards support: Freaduino UNO/ Arduino UNO/Freaduino Mega2560/Arduino Mega2560
Built-in proximity detection
9 Basic gestures：（Up/Down/Right/Left/Forward/Backward/Clockwise/Count Clockwise/Wave）
Detection range：5-10cm
Ambient light immunity：< 100k Lux
Power supply：5V
Working temperature -20℃ ~ 70℃
Size: 23.48mm×31.28mm
APPLICATION
can be used with other OCTOPUS series electronic building blocks
smart car
robot
mobile phone
PACKAGE LIST
| Components | Qty(pcs) |
|---|---|
| Octopus Gesture Sensor | 1 |
